Vibration Switches

Our vibration switches are electronic vibration protection limit switches for commercial and industrial rotating machinery. The switch sensors and electronics are integral and it mounts directly to the machine. Models 550 and 550-X provide 4-20 mA outputs for remote monitoring. Limit Relays connect directly to PLC,s, DCS's or other control systems.
Model

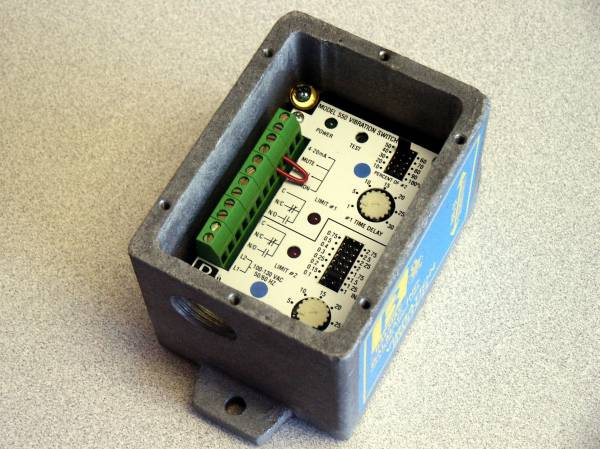

550

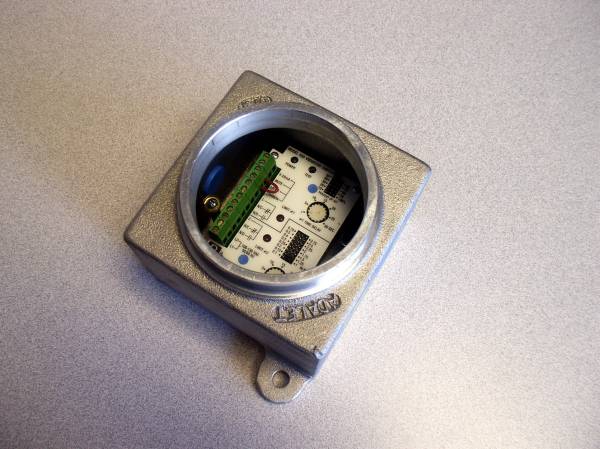

 550-X

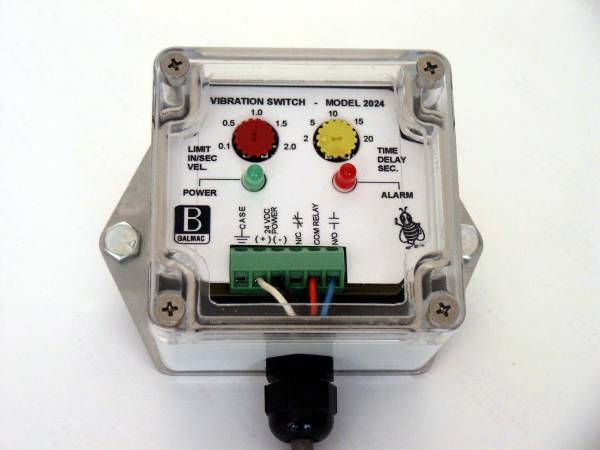

 2024
Click for large image
 pdf fileSpec Sheet
 Click for large image
 pdf fileSpec Sheet
Click for large image
 pdf file Spec Sheet
Features
  • Monitors Vibration Velocity (in/sec)
  • 2 Limit Relays Alarm and/or Shutdown
  • 2 Time Delays
  • LED Limit & Power Indicators
  • Test Button
  • Integral Sensor & Electronics
  • Replaces Mechanical Switches
  • 110/220 VAC
  • Explosion Proof Rated Enclosure
  • Monitors Vibration Velocity (in/sec)
  • 2-Limits Automatic Alarm and/or Shutdown
  • 2-Time Delays
  • LED Limit & Power Indicators
  • Test Button
  • Integral Sensor & Electronics
  • Replaces Mechanical Switches
    •
    • Powered by 24 VDC
    • Monitors Vibration Velocity
    • 1-Limit Automatic Alarm or Shutdown
    • -Time Delay
    • User selectable limits
    Measurements
    Velocity - in/sec

    120 to 60,000 RPM
    (3 to 1000 Hertz)     		Velocity - in/sec

    120 to 60,000 RPM
    (2 to 1000 Hertz)     		Velocity - in/sec

    120 to 60,000 RPM
    (2 to 1000 Hertz)
    Ranges
    0.1 to 2.75 in/sec peak 0.1 to 2.75 in/sec peak 0.1 to 2.00 in/sec peak
    Enclosures
    Water and dust-tight
    cast aluminum
    NEMA 3, 4 and 12     		Adalet(R) Rated Enclosure
    cast aluminum
    See Spec Sheet for listings     		NEMA 4X
    Polycarbonate
    Stainless Steel Base
    Metric Version
    550M (mm/sec) 550M-X (mm/sec) Not Available
