Transmitters and Monitoring Systems

Our economical vibration transmitters use the "industrial standard" two-wire, single-loop technology with a 4-20 MA ouput that is proportional to the vibration level. Our transmitters are used with either Model 1112 Vibration Monitors to provide alarm and shutdown capabilities, or wired directly into PLC's, DCS or most standard commercial and industrial control systems. Model 401 Monitor is a dual channel, continuous monitor with display that measures in velocity or displacement.


Model
140-T/140

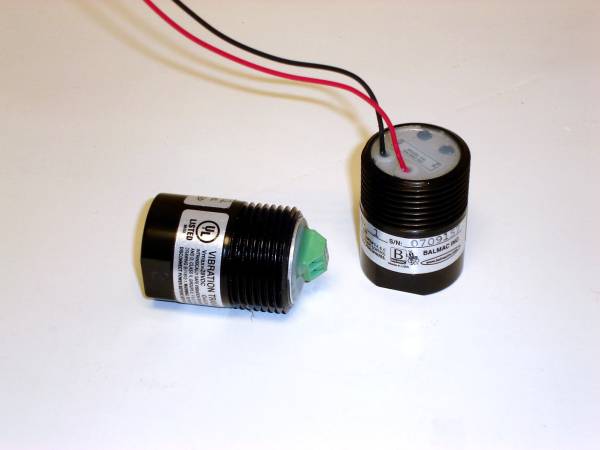

Model 140
191

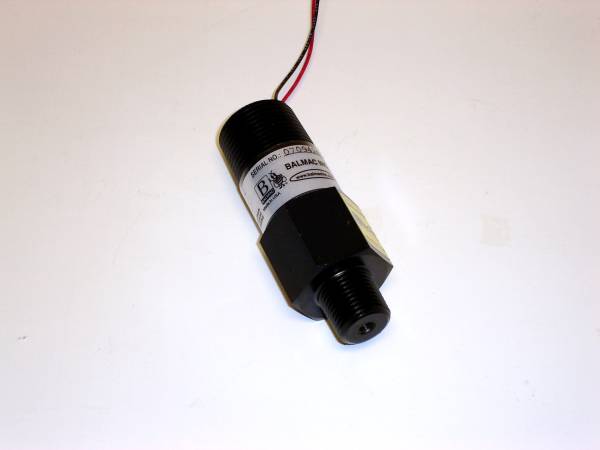

Model 191
1112

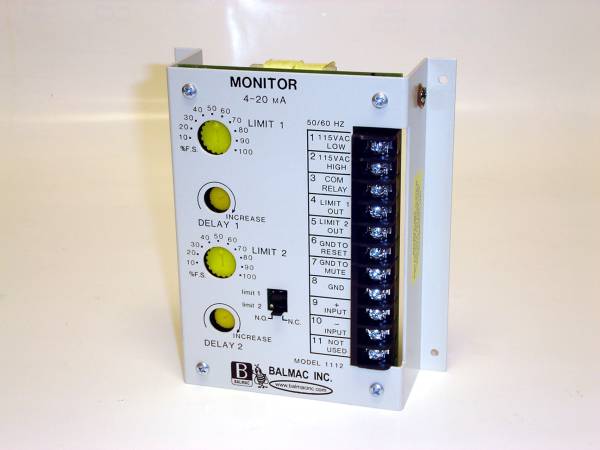

Model 1112
401

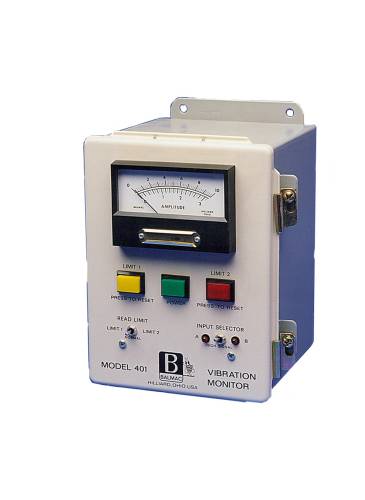

Model 401
158

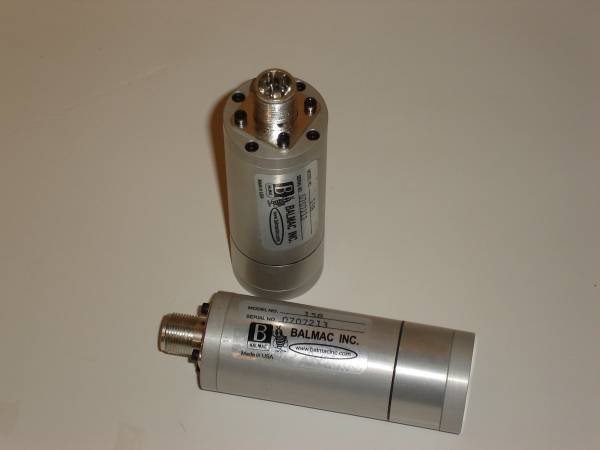

Model 158
Click for large Image
pdf fileSpec Sheet
Click for large Image
pdf fileSpec Sheet
Click for large Image
pdf fileSpec Sheet
Click for large Image
pdf fileSpec Sheet
Click for large Image
pdf file Spec Sheet

Features
  • UL Listed
  • Two-wire 4-20 mA Output
  • Intrinsically Safe*
  • Rugged NEMA 4 Case
  • Size:1.25"dia x1 .75"L
  • 140-T Series has Terminal Strip
  • UL Listed
  • Two-wire 4-20 mA Output
  • Intrinsically Safe*
  • Rugged NEMA 4 Case
  • Size:1.5"dia x 4 .125"L
  • 191-25 Series designed for vibratory conveyors
  • Series Current Loop 4-20 mA Controller
  • Two Adjustable Setpoints Alarm and Shutdown
  • Adjustable Time Delays
  • Remote Reset
  • N/O or N/C/
  • Field Selectable
  • 115 VAC
  • Monitors Velocity or Displacement
  • Provides Continuous Display
  • Monitors Two 158 Pickup Inputs
  • Two Adjustable Relays Alarm and Shutdown
  • Adjustable Time Delays
  • 115 VAC
  • Velocity type Transducer
  • 9 - 2000 Hertz
  • Self-generated Output
  • No Electronics
  • Hermetically sealed

Measurements
Velocity-Peak


420 to 78,000 ROM
(7 to 1300 Hertz)
Velocity-Peak


420 to 78,000 ROM
(7 to 1300 Hertz)
Monitors Model 140 Series or Model 191 Series Transmitters


Velocity - in/sec
Displacement - mils

120 to 120,000 ROM
(2 to 2000 Hertz)
Velocity


540 to 120,000 ROM
(9 to 2000 Hertz)

Range Full Scale
140-1 = 0 to 1 in/sec
140-2 = 0 to 2 in/sec
140-5 = 0 to 5 in/sec
191-1 = 0 to 1 in/sec
191-2 = 0 to 2 in/sec
191-5 = 0 to 5 in/sec
0-100% of 4-20mA Input


.01, 0.3, 1, 3
10,30,100
Mils or Inches/Sec
Not Applicable



Options
140-T Series has Terminal Strip 191-SS = Stainless Steel
191-25 = 0 to 25 in/sec
-- 401P for Panel Mount version
Pickup Cables
158 Pickup
Magnetic Base
